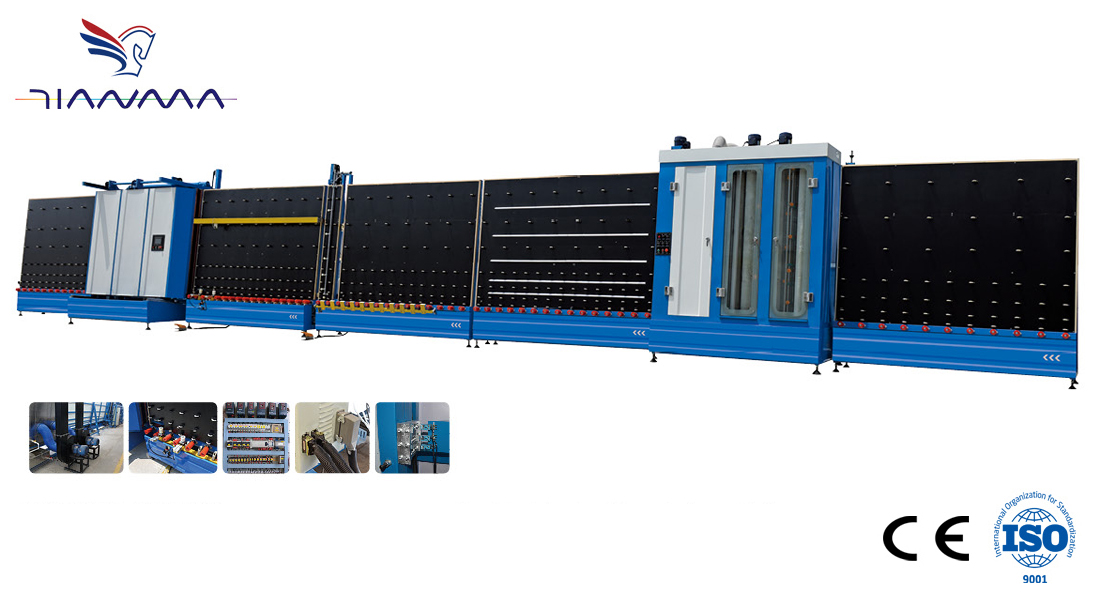

ZK2000/ZK1800 Automatic Insulating Glass Production Line
Clicks：
Product Details
Numerical control system with human touch screen interface.
Automatically distinguish the coating side of the coated glass and Low-E glass.
Perfect washing performance for on/off line low-E glass.
The glass washing machine adopts oil-free lubricating bearing.
The hydraulic control parcel outside together sheets, plates pressure big opening.
Specially designed for structure-stepped insulating glass and 3-layer insulating glass processing (Optional).
This machine has the industry patent intelligence start and stop function.
Automatically distinguish the coating side of the coated glass and Low-E glass.
Perfect washing performance for on/off line low-E glass.
The glass washing machine adopts oil-free lubricating bearing.
The hydraulic control parcel outside together sheets, plates pressure big opening.
Specially designed for structure-stepped insulating glass and 3-layer insulating glass processing (Optional).
This machine has the industry patent intelligence start and stop function.
Technical Parameters
Model: ZK2000
The largest size of processed glass: 2000 × 2500mm
Minimum size of processed glass: 540 × 280mm
Glass thickness: 4-16mm
Insulating glass thickness: 48mm
Glass cleaning speed: 2-10m/min
Transmission speed: 45m/min
Brush: 3 pairs
Air compressor: flow rate 0.8m3/min air pressure 1Mpa
Electric power: 380V 50Hz 18kW
Water: water consumption 0.5t / h water conductivity ≤ 50μS / cm
Dimensions: 18800 × 2000 × 2950mm
Model: ZK1800
The largest size of processed glass: 1800 × 2500mm
Minimum size of processed glass: 540 × 280mm
Glass thickness: 4-16mm
Insulating glass thickness: 48mm
Glass cleaning speed: 2-10m/min
Transmission speed: 45m/min
Air compressor: flow rate 0.8m3/min air pressure 1Mpa
Brush: 3 pairs
Electric power: 380V 50Hz 13kW
Water: water consumption 0.5t / h water conductivity ≤ 50μS / cm
Dimensions: 18800 × 2000 × 2750mm
The largest size of processed glass: 2000 × 2500mm
Minimum size of processed glass: 540 × 280mm
Glass thickness: 4-16mm
Insulating glass thickness: 48mm
Glass cleaning speed: 2-10m/min
Transmission speed: 45m/min
Brush: 3 pairs
Air compressor: flow rate 0.8m3/min air pressure 1Mpa
Electric power: 380V 50Hz 18kW
Water: water consumption 0.5t / h water conductivity ≤ 50μS / cm
Dimensions: 18800 × 2000 × 2950mm
Model: ZK1800
The largest size of processed glass: 1800 × 2500mm
Minimum size of processed glass: 540 × 280mm
Glass thickness: 4-16mm
Insulating glass thickness: 48mm
Glass cleaning speed: 2-10m/min
Transmission speed: 45m/min
Air compressor: flow rate 0.8m3/min air pressure 1Mpa
Brush: 3 pairs
Electric power: 380V 50Hz 13kW
Water: water consumption 0.5t / h water conductivity ≤ 50μS / cm
Dimensions: 18800 × 2000 × 2750mm
